Drawing of the rear ragtop parts

Viewing 7 reply threads
  • Author
    Posts
    • 10th February 2017 at 23:53 #2579
      Thorleifur Asgeirsson
        @thorleifur-asgeirsson

        What I need is a drawing / part view of the rear canvas tops, If anyone has good part list it would be nice.
        Is this something I need a pair of ?

      • 11th February 2017 at 12:04 #2599
        John Bleasdale
          @bleasie

          I WILL ASK Bryan if there is a digram in the Parts Manual it does not have photographs

        • 16th February 2017 at 00:42 #2845
          Thorleifur Asgeirsson
            @thorleifur-asgeirsson

            What I need to know, is if this part is the one I need holding the hood/hard top in place ot if this is for the convertible:
            Mine is as can be seen
            The homemade latches

          • 16th February 2017 at 00:43 #2846
            Thorleifur Asgeirsson
              @thorleifur-asgeirsson

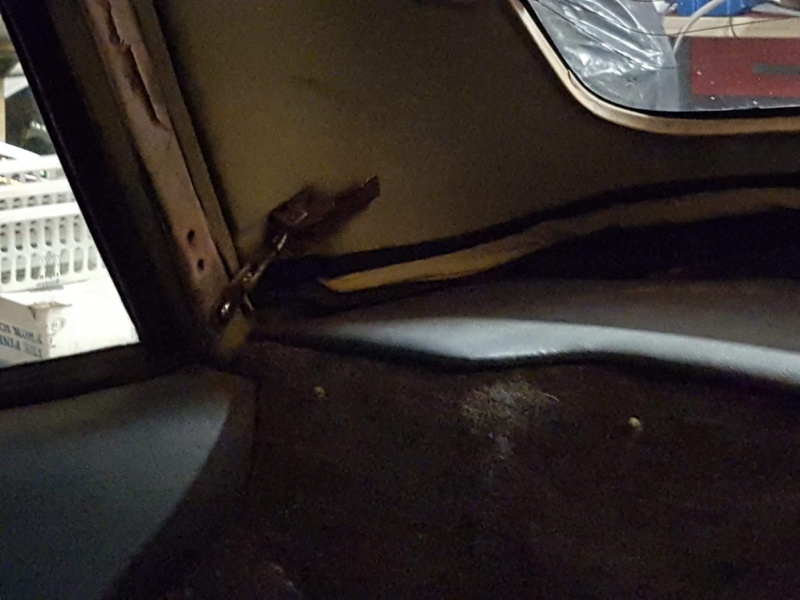

              Photo 408

            • 16th February 2017 at 16:06 #2881
              Thorleifur Asgeirsson
                @thorleifur-asgeirsson

                This is a monolog me thinks.
                All I ask for is a picture of the correct hard top / soft top latches to know if the one at the top is for a Convertible or a cabriolet.

              • 16th February 2017 at 19:14 #2904
                Bryan Thomas
                  @bryan-thomas-1

                  Hi Thorleifur the pictures are all of the cabriolet. you can see 3 fixings the top 2 hold the cantilever assembly of the soft top the bottom fixing is for the hard top as shown .Once the hard top is removed the bottom fixing hole is not used . hope this explanation helps kind regards Bryan

                • 16th February 2017 at 20:39 #2919
                  Thorleifur Asgeirsson
                    @thorleifur-asgeirsson

                    The photos are of the home made latches that are on the hard top of my XJ-SC now
                    What do I need now, that I have the soft top pictured and the hard top.
                    I need some original latches and???
                    https://www.facebook.com/photo.php?fbid=10212713633022148&set=pcb.1915994108619626&type=3&theater

                  • 16th February 2017 at 20:40 #2921
                    Thorleifur Asgeirsson
                      @thorleifur-asgeirsson

                      http://i.ebayimg.com/images/g/nCsAAOSwiylW~jPF/s-l1600.jpg

                      I need this ………..right
