6th March 2018 at 16:56 #12430
i noticed serious bubbles under the textile on the front part of the targa. bad news.
anyone any experience with this ? advice ?
as probably the whole roof and softtop will be redone,are the targa rubbers available yet Laurence ??
does the soft top come as a ready made kit somewhere ?
7th March 2018 at 15:38 #12446
Hi Gerben @gerbenharingsma
The front roof area is a common target for rust on our cars, whether in Coupe or Cabriolet version – in fact the situation is made worse on our Cabriolet’s by the presence of the textile glued over the metal work. When I had my Targa panels painted red (rather than have them recovered) i had this front roof section painted as well, and we discovered rust starting to take hold there.
So yes, a warning to all Cabriolet onwers is to physically check that front roof section, by passing your hand over the textile covering and see if you can determine any change of shape which may be rust underneath…
Factory has produced a sample of the Targa aperture rubber seals – I just haven’t had time to go pick it up yet, but hope to in the next few days.
Yes there is a company that, at a cost, provide a complete kit of the rear hood, Targa Panel cover and front roof surrround material – I will see if I can find their details.
17th March 2018 at 17:31 #12578AnonymousInactive
i have a small raised area just above the window on the passenger side, so I expect it would be difficult to peel back the material to view this. I see there is a company called carhoodsdirect.co.uk that supply a roof kit. The car they show is a cabriolet but I cannot understand why it fits models only from 1987. It is one of those jobs that once you start looking at can become a hard to sort out. This could have been there all the time I have owned the car but now only found by Laurence advise to check this.
21st March 2018 at 13:17 #12603
Hi Alan @cabriolet
I agree, it could have been there a while, and may historic, however all I can say is, it shouldn’t be there – the roof should be as smooth as if it was a Coupe’s roof.
I think you’re right in saying that it would be difficult, though not impossible, to peal back the roof’s covering. There’s the additional challenge that it’s likely glued down below the line of the front windscreen rubber, possibly necessitating removing the windscreen itself to give you the best chance as possible to peal back the covering with a view of gluing it back after instpection.
The alternative is to leave things alone, and just monitor the raised area to confirm it’s not getting bigger/unstable.
Gerben @gerbenharingsma , have you made any investigations of the bubbles you’ve found?
21st March 2018 at 14:26 #12607AnonymousInactive
It is a job that is on the list to sort out but not at this time of year. I budget each year to improve my car and next month I am having a stainless steel exhaust fitted.
My ideal solution to the roof is to have it completely recovered and this would be done through the winter. To start with I would probably remove the windscreen trims to see what that reveals.
As you can appreciate it is not a straight forward job as you probably have to disturb the targa seal and the possibility of removing the windscreen. Did you have to remove the windscreen on yours to sort out the rust?
26th March 2018 at 13:57 #12664
Hi Alan @cabriolet
I was in the positon that the screen had to come out anyway as the rubber was cracked and causing leaks, so had the roof sorted at the same time. Also found that changeing the windscreen rubber enabled the side chrome strips to fit much better and neater.
27th March 2018 at 20:05 #12698
any chance of the targa rubbers being available soon ?
soon: like in april ?
17th April 2018 at 10:01 #12888EltjoParticipant
Some time ago the same problem was subject of a discussion between me and Wijnanda van der Sman
Below are the steps she have taken to stop this problem.
I have the fabric upholstery cut away just above the windshield rubber, under the chrome trim of the upper windscreen I removed the rubber rubber and then cut the outer covering on the seam with the inner lining.The chrome trim stripped above the windshield on the sides and covered with protective tape during work The chrome tees on the side of the windshield are removed to be able to work well in the corners of the front frame and keep the water drainage in the holes .Consequences:· The rubber rubber needs to be secured / glued again· You can no longer reuse the original fabric from the outer covering
Destroy the affected metal parts with RustyCo. This certainly done 3 times and intermediate sanding, sanding, sanding, sandingThe front frame is, as it were, a hollow flat tube with a few nice curves. In particular, the beautiful rounded corners of my car just rusted away. I also cleaned this hollow space as well as possible from all loose metal particles and rust formation. So I did not make the choice to let this part shine (too thin metal) or to have it welded.Consequences:· Because of the sanding you can quickly reach the chrome trim on the windshield. Cover this well / cover· This process takes at least a day or 2 to give the RustyCo a good time to do its work and to clean up in the meantime
I have also done the “build-up” myself by first smoothing the largest holes with fiber mat and auto-lamination / resin and then making new rounds at the corners with malleable metal, so that I have the original shape back. I had already seen a kind of mallet in step 1 before I started sanding and removing loose parts.Consequences:· This process also had to be done in steps because the filler / resin needs to be properly cured for the next layer· When recalibrating the curves, take into account the water drainage on the side of the windscreen. Above the doorposts there is a gutter with the side of the wheat panels “in”. This gutter takes the (rain) water both to the rear and the front. If you remove the decorative strip and the T-strips on the sides of your windshield, this gutter can be clearly seen. When re-building the corners, this outlet must absolutely return so that the water can keep running away.
I also did the finishing work myself. Only with fabric upholstery but with a new product, namely PlastiDip. This is liquid rubber in an aerosol can. First spray a special primer and then the plastidip over it. In total I had to spray 1x primer and then 3 thin layers of black colored plastidip. I have all the parts where the outer covering was covered with plastidip, so also the gutters above the doors and the edges around the wheat rubber.
PlastiDip gives a layer that protects against moisture and looks good (temporarily).· PlastiDip forms entirely to the bottom layer and is very easy to remove later when the “re-coating” project is started by an official company.· When spraying with the primer and plastidip ALL parts where you do not want rubber on have to be covered (the same as if you would spray the car with paint)· I sprayed the primer and plastidip standing in the car in the openings of the targa panels and worked all around, making a whole stroke for 1 layerMaybe you’re wondering why I did not immediately choose to take out the windshield and have the frame trimmed again. At that time, it was a question of uncertainty whether my XJ-SC would endure the test of “shelf life”. I restore the car in stages and share it in manageable “chunks”. The outside was planned for me last, first the loadbearing parts (subframes front and rear) and motorically in order and then the sheet metal and the niceness. However, due to leakage at the rusted parts of this front frame, I have executed this temporary solution until the moment the targa panels are re-coated and the new rubber rubber is put in and the new rear roof. For this all parts already in house.I want to have this job done by a company in Elst that specializes in convertible roofs and repairs.
I have in pdf some pictures. If anyone of you like to have those just let me know your email.
Regards, Eltjo Ottjes
XJ-SC V12 1986
12th May 2018 at 18:20 #13158Steven FosterParticipant
Aldridges do the complete roof….bar rubbers.
Quoted me 2500 fully fitted including vat
You can however buy the parts from them and do it yourselves.
Google them. There is an itemised price list on their site
12th May 2018 at 20:09 #13160
Photo 1336 does not existPhoto 1337 does not existPhoto 1341 does not existPhoto 1338 does not exist
12th May 2018 at 20:12 #13162

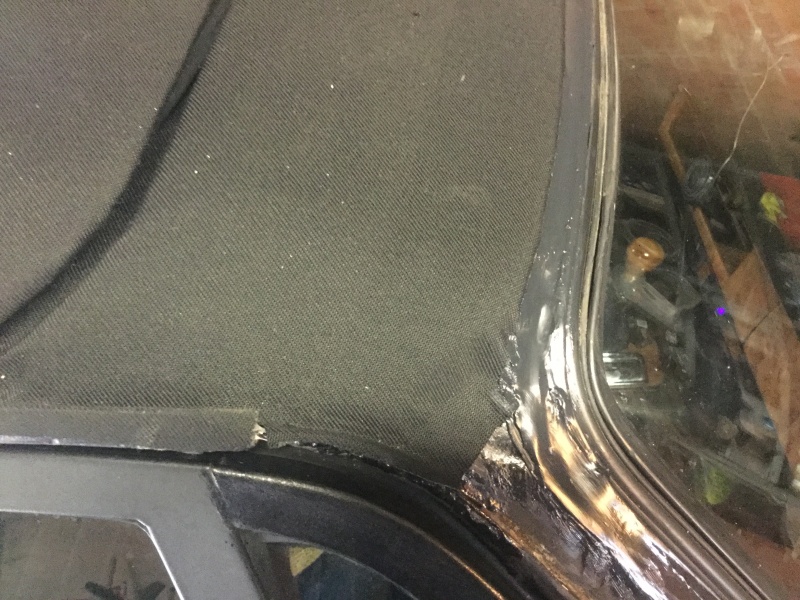

there was indeed a hole rusted through.and a small one on the right side of the car.
painstakingly cleaned the area,welded and made smooth with lead. sanded and painted.
ready for the final paint and new fabric.
for which we will need the new rubber,or make one ourselves.
problem almost solved.
19th May 2018 at 23:44 #13270
20th May 2018 at 10:50 #13276AnonymousInactive
It is good and brave to tackle this job but my concern would be the quality of the retrimming of the roof material. Do you have experience of this type of work? How far are you taking back the roof materiel as I see at this moment you seem to have cut it back at the 1st seem above each door. The top of each front pillar looks like a difficult area to recover without any creases. It would be good to get some feedback about this process. I have gone on Aldridge’s site and they show a price for the folding roof and material for the Targa panels but no mention of materials for this job. I presume you would have to speak to them direct to get an off cut for the front roof area. I live in York and I find it difficult to get a quote for a job like this as the extent of work is unknown until a full strip down is complete. A big question mark would be the removal of the windscreen. This is a challenging job so thanks for your feedback.
22nd May 2018 at 20:03 #13299
i did not remove the windscreen.rubber is fine nd probably replaced in the past.
along the chrome trimming,i cut away the rubber ,leaving a wide enough gap to glue the new material.
i intend to reposition the trimming and to fill the gap with a good quality kit, like in my case teck7,
the big problem will be ,to carefully avoid the kit coming on the new fabric,but i think it can be done with good quality painters tap on the fabrick.on the other side, the chrome trimming will give no problem.
will put pictures whenn job done.oo and i will do the whole thing,including the targa pannels,as the material is not that expensive and i donot want clour differences.
22nd May 2018 at 20:26 #13300
Photo 1352 does not exist
22nd May 2018 at 21:06 #13306AnonymousInactive
I look forward to seeing the completed job – is teck7 an adhesive/sealant?
22nd May 2018 at 21:37 #13308
Photo 1353 does not exist
22nd May 2018 at 22:45 #13310AnonymousInactive
Thanks for the explanation, and as you say you need to keep it off the upper side of the roof material.
16th June 2018 at 10:30 #13512
this picture thing is more difficult thenn the roof job !

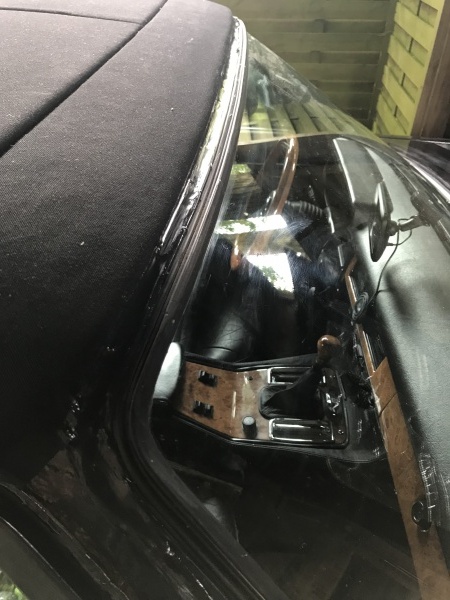

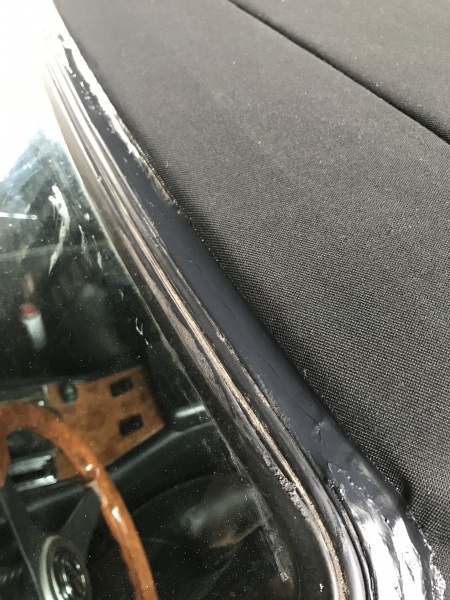

the roof has been recovered,the cut away rubber refilled,and as soon as dry,the trimming will be put back.
also not an easy thing to do well !
i tried to fit before the kit and there is no easy fit anymore.the chrome has to be re-bend at places,where you
would think after all these years the shape should be fixed.allas no..
the good thing is,that the new (very thin) fabric used,is coated with a thin layer of rubber.water cannot go through
the fabric onto the paint/metal of the roof ! this puts my mind at ease for the future (a bit).
16th June 2018 at 10:30 #13514
Photo 1393 does not exist
16th June 2018 at 10:31 #13515
Photo 1393 does not existPhoto 1392 does not exist
Photo 1394 does not exist
17th June 2018 at 20:14 #13536
